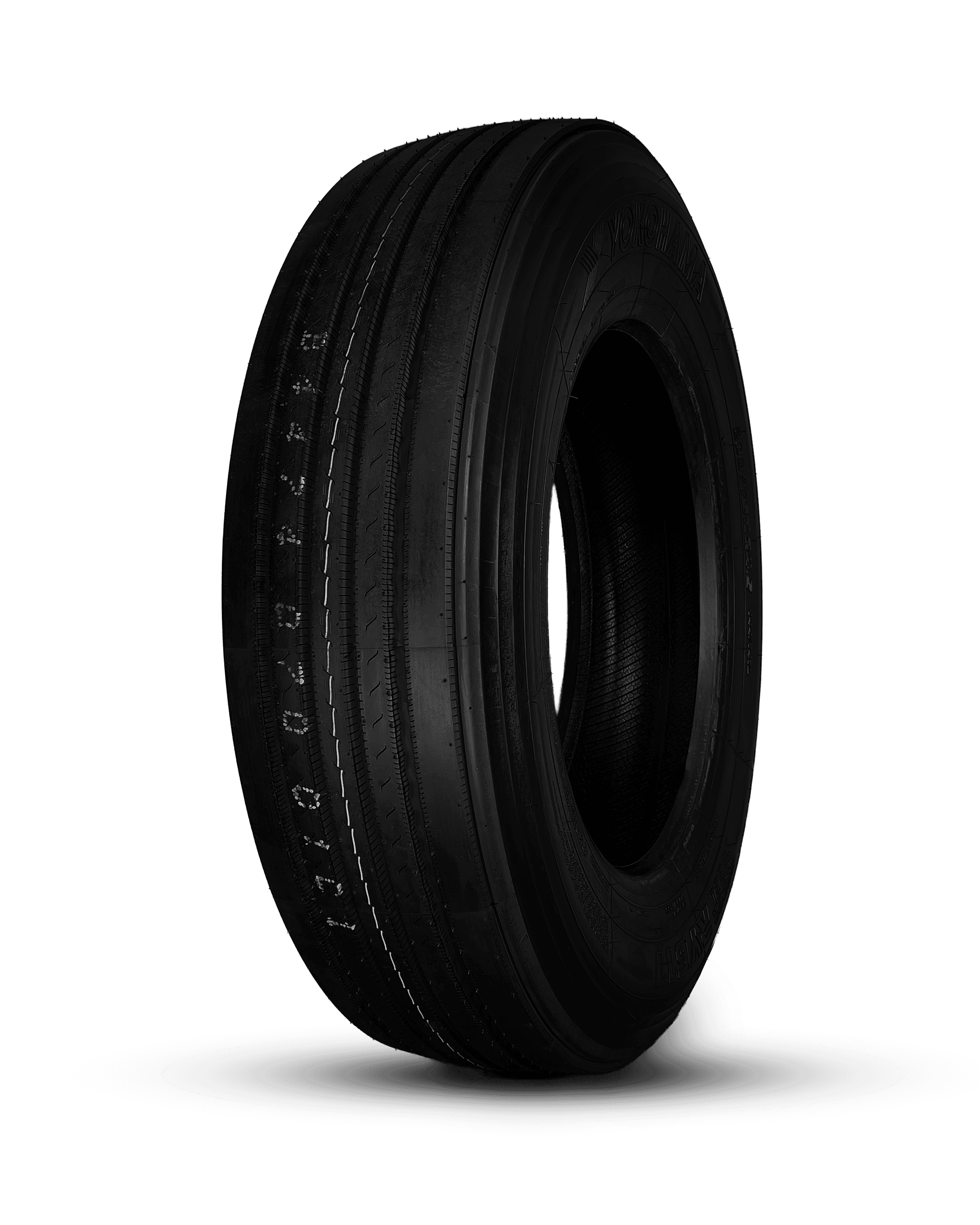

The Yokohama RY617 295/75R22.5 is a SmartWay-verified all-position radial tire optimized for steer axles on long-haul and regional-haul commercial trucks, featuring a durable five-rib tread design with 6,000 stress-control sipes for superior wet traction and even wear, 16-ply construction, 146/143L load index, L speed rating (up to 75 mph), 18/32-inch tread depth, and a 41.3-inch overall diameter.
Key Benefits
Long Tread Life
Deep tread (18/32″) promotes long, even wear.
Stress-control grooves help distribute pressure and reduce uneven shoulder wear.
Wet Weather Traction
Five-rib tread with sipes channels water for improved traction and reduced hydroplaning risk.
Contoured groove walls provide rib stiffness for consistent handling in wet conditions.
Durability & Casing Protection
Stone-ejecting grooves and reinforced sidewalls protect the tire casing from debris damage.
Casing construction supports multiple retreads for extended service life.
Fuel Efficiency
Low rolling resistance design helps improve fuel economy.
Even tread wear helps maintain efficiency over the tire’s life.
All-Season / Versatile Use
Suitable for all-season long-haul and regional highway operations.
Can be used in steer or all-position applications, offering fleet flexibility.
Warranty / Support
Backed by Yokohama’s limited warranty for manufacturing defects.
Designed for durability and consistent performance.
Technical Specifications - Yokohama RY617 295/75R22.5
Specification | Value / Description |
|---|---|
Model | Yokohama RY617 295/75R22.5, steer / all-position, 16‑ply |
Tread Depth (New) | 18 / 32″ |
Load Rating | 146 / 143 (Load Range H) |
Maximum Inflation Pressure | 120 PSI |
Speed Rating | L (75 mph) |
Overall Diameter | ~40.1 in |
Recommended Rim Width | 8.25 in (Approved up to 9.00 in) |
Maximum Load (Single / Dual) | 6,610 lb single / 6,005 lb dual |
Static Loaded Radius | 18.7 in |
This tire is designed for durability, even wear, fuel efficiency, and wet-weather traction, making it ideal for fleets needing steer or all-position tires for long-haul and regional use.
