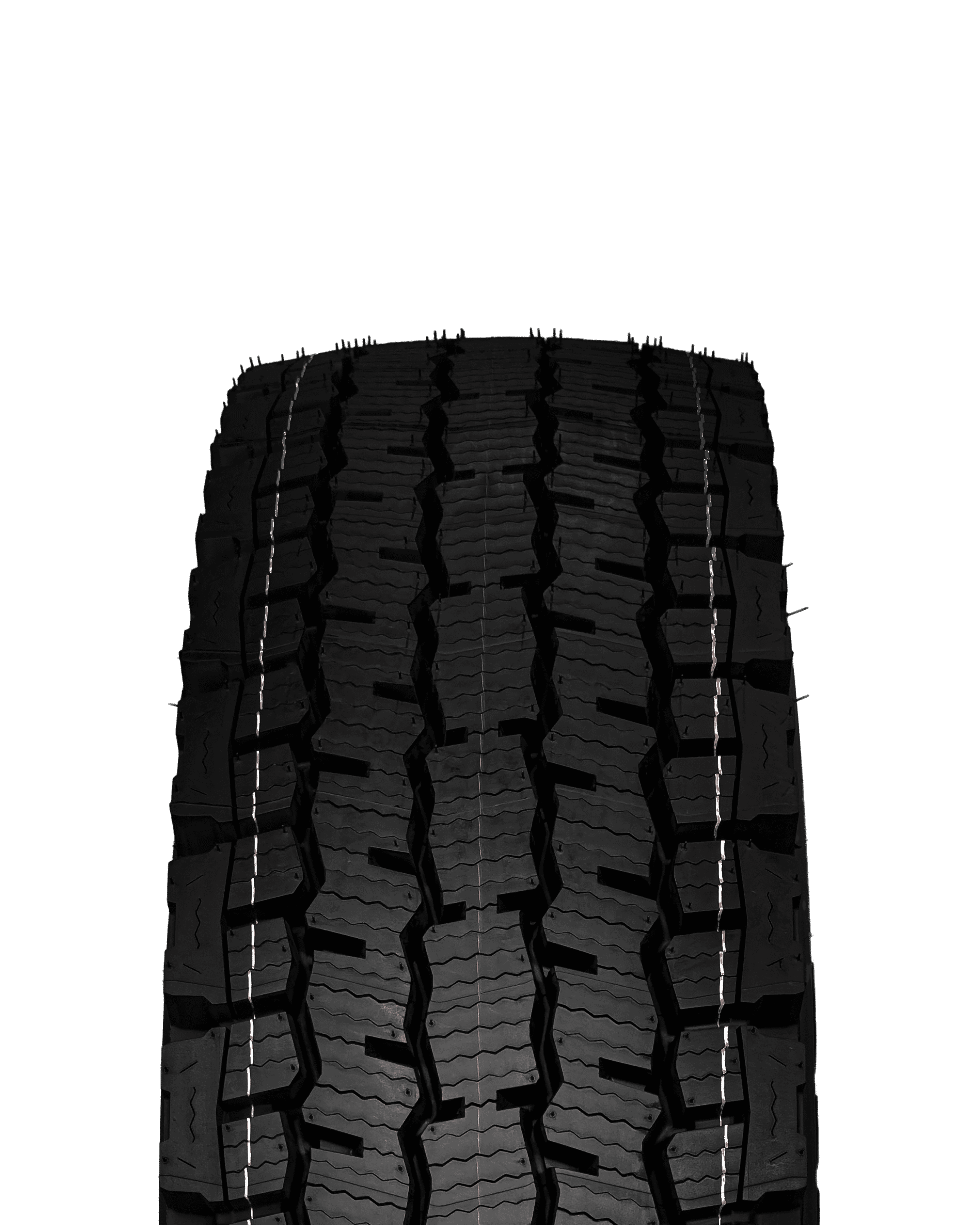

The Michelin XDN2 11R22.5 LRH 16PL is an all-weather premium radial drive tire optimized for regional and line-haul commercial truck applications, featuring 16-ply H load range construction, a 146/143L load index, H speed rating (up to 75 mph), 27/32-inch tread depth, and a 41.7-inch overall diameter for exceptional traction, even wear, and extended mileage.
Key Benefits
Excellent Traction & Safety
Matrix siping technology creates hundreds of biting edges for strong grip on wet or slippery surfaces.
Wide-open shoulder grooves improve stability and cornering, especially under load.
Long Tread Life
Deep tread (27/32nds) offers long wear life, reducing replacement frequency.
Matrix siping helps tread wear more evenly.
Durable Casing
Full-width elastic protector ply guards against bruising and penetrations.
Bead bundle is designed for fatigue resistance, extending casing life.
High Load Capability
Handles heavy loads typical in drive-axle or mixed-service applications.
16‑ply Load Range H construction ensures strong capacity.
High Speed Stability
Rated for highway use with a maximum speed of ~75 mph, suitable for commercial driving.
Technical Specifications
Specification | Value / Description |
|---|---|
Tire Model | Michelin XDN2 11R22.5 (16‑ply) |
Overall Diameter | ~1,060 mm / 41.7 in |
Tread Depth (New) | 27/32″ (~21.3 mm) |
Recommended Rim Width | 8.25 in |
Minimum Dual Spacing | 318 mm / 12.5 in |
Max Speed Rating | 75 mph / 121 km/h |
Maximum Load (Single) | 6,175 lb / 2,800 kg |
Loaded Radius | 495.3 mm / 19.5 in |
Seat Diameter | 22.5 in |
Construction / Ply | 16‑ply (Load Range H) |
Summary:
The Michelin XDN2 11R22.5 LRH 16‑ply is a durable, high-performance drive-axle tire with excellent traction, long tread life, and strong load-carrying capacity. It’s ideal for fleets that need durability and consistent performance under heavy loads.
