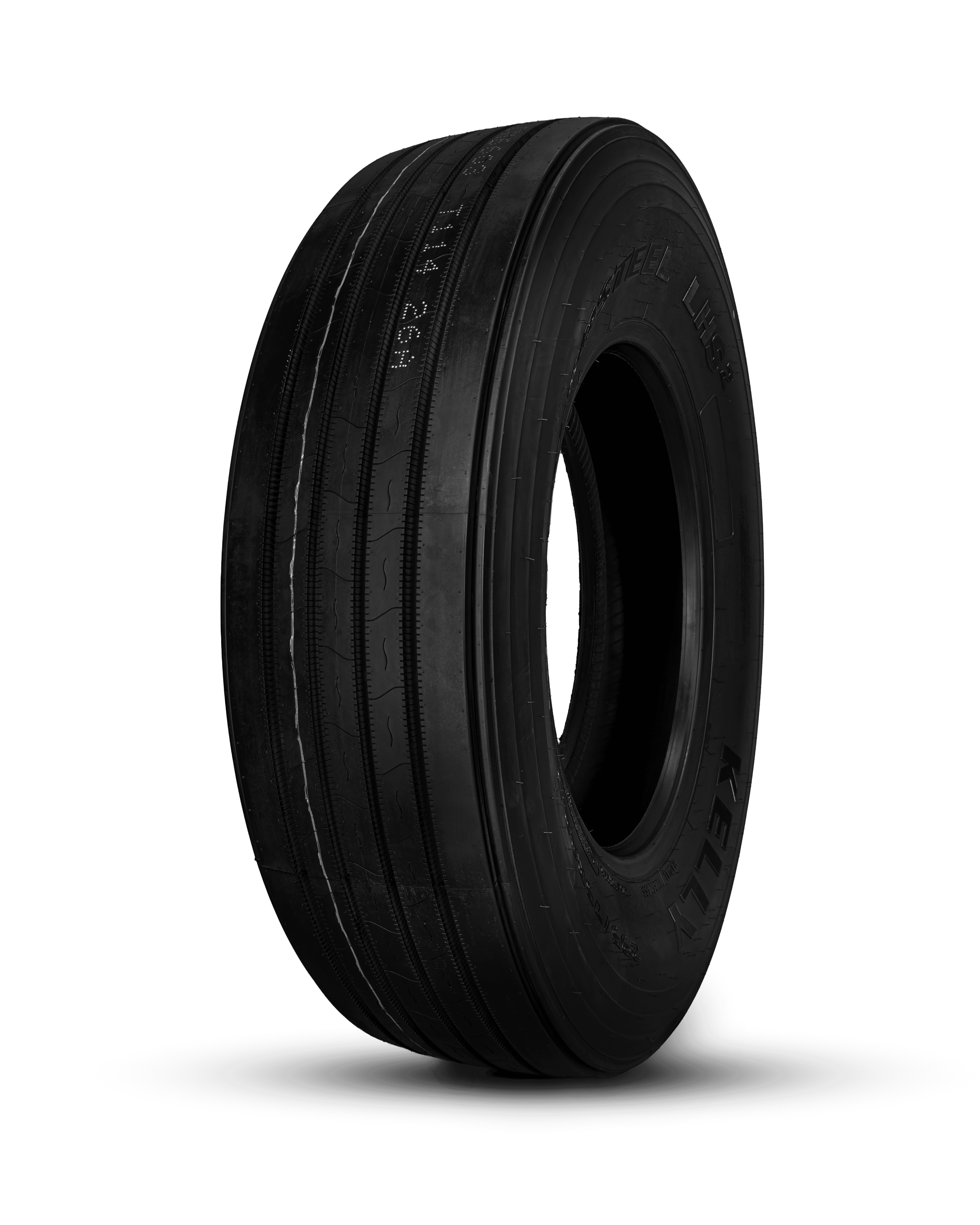

The Kelly Armorsteel LHS 295/75R22.5 is a SmartWay-verified all-season radial steer tire designed for long-haul commercial trucks, featuring 14-ply G load range construction, a 144/141L load index, L speed rating (up to 75 mph), 18/32-inch tread depth, approximately 40.4-inch overall diameter, and a unique barrel-shaped footprint with pressure distribution grooves for enhanced fuel efficiency, even wear, and extended mileage.
Key Benefits / Features
Fuel Efficiency: With its SmartWay certification, this tire is designed for lower rolling resistance to help improve fuel economy.
Durable Construction: Built with a 5-rib tread and 4-belt construction for long mileage and even wear.
Uniform Wear: The barrel-shaped footprint and unique pressure-distribution groove help minimize shoulder wear and promote even tread wear.
Long Haul Ready: Engineered for long-haul steer applications with a design that balances durability and efficiency.
Stability & Handling: The tread design helps with stable handling under load through large, stable ribs.
Spec Chart — Kelly ArmorSteel LHS 295/75 R22.5
Property | Specification |
|---|---|
Product / Model | Kelly ArmorSteel LHS 295/75 R22.5 |
Ply / Load Range | 14‑ply, Load Range G |
Load Index | 144 / 141 (Single / Dual) |
Speed Rating | L (75 mph) |
Maximum Inflation Pressure | 110 psi |
Overall Diameter | ~ 40.0 in |
Tread Depth | 18 / 32nds |
Measuring / Approved Rim Width | 8.25″ |
Maximum Load | Single: 6,175 lb / Dual: 5,675 lb |
Sidewall Type | Black Sidewall (BSW) |
Certification / Special Features | SmartWay Verified (low rolling resistance) |
